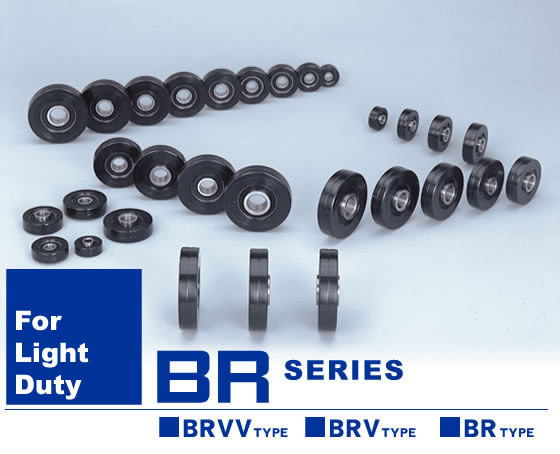

BRseries(for Light Duty)

HOME > PRODUCTS > BESTROLLER > BRseries

Type	Special Bearing	Basic Dimensions(mm)									Weight （ｇ）
		D		d		da	B		BO	W
ＢＲＶＶ－20	6962RSVV	20	+0.2 -0.2	6	+0 -0.02	8.6	8	+0 -0.5	5	11	7
ＢＲＶＶ－25	6262RSVV	25		6		9.3	9		6	12	12
ＢＲＶＶ－30	6082RSVV	30		8	+0 -0.04	12	11		7	15	21
ＢＲＶＶ－35		35									24
ＢＲＶＶ－40	60002RSVV	40		10		14	12		8	16	34
ＢＲＶＶ－45	62012RSVV	45		12	+0.005 -0.012	18.3	14		10	18	60
ＢＲＶＶ－50		50									66
ＢＲＶＶ－55	62022RSVV	55		15		21.6	15		11	19	82
ＢＲＶＶ－60		60									90
ＢＲＶＶ－65	62032RSVV	65		17		24.6	16		12	20	120
ＢＲＶＶ－70		70									130
ＢＲＶＶ－75	62042RSVV	75		20		29.3	18		14	22	188
ＢＲＶＶ－80		80									199

＊ＢＲＶV－20、-25、-30＆-35：Single-row construction

Type	Special Bearing	Basic Dimensions(mm)									Weight （ｇ）
		D		d		da	B		BO	W
ＢＲＶ－20	6962RSV	20	+0.2 -0.2	6	+0 -0.02	8.6	8	+0 -0.5	5	9.5	6
ＢＲＶ－25	6262RSV	25		6		9.3	9		6	10.5	11
ＢＲＶ－30	6082RSV	30		8	+0 -0.04	12	11		7	13	19
ＢＲＶ－35		35									22
ＢＲＶ－40	60002RSV	40		10		14	12		8	14	32
ＢＲＶ－45	62012RSV	45		12	+0.005 -0.012	18.3	14		10	16	55
ＢＲＶ－50		50									61
ＢＲＶ－55	62022RSV	55		15		21.6	15		11	17	76
ＢＲＶ－60		60									83
ＢＲＶ－65	62032RSV	65		17		24.6	16		12	18	112
ＢＲＶ－70		70									121
ＢＲＶ－75	62042RSV	75		20		29.3	18		14	20	175
ＢＲＶ－80		80									187

＊ＢＲV－20、-25、-30＆-35：Single-row construction

Type	Special Bearing	Basic Dimensions(mm)								Weight （ｇ）
		D		d		da	B		BO
ＢＲ－20	6962RS	20	+0.2 -0.2	6	+0 -0.008	8.6	8	+0 -0.5	5	5
ＢＲ－25	6262RS	25		6		9.3	9		6	10
ＢＲ－30	6082RS	30		8		12	11		7	17
ＢＲ－35		35								20
ＢＲ－40	60002RS	40		10		14	12		8	30
ＢＲ－45	62012RS	45		12		16.8	14		10	50
ＢＲ－50		50								56
ＢＲ－55	62022RS	55		15		20	15		11	70
ＢＲ－60		60								77
ＢＲ－65	62032RS	65		17		23	16		12	104
ＢＲ－70		70								113
ＢＲ－75	62042RS	75		20	+0 -0.01	27.6	18		14	164
ＢＲ－80		80								176

＊ＢＲ－20、-25、-30＆-35：Single-row construction

The above allowable load values are in N(Newton). 1N = 0.1019716kgf

BEST ROLLER for Light Duty/List for Selection by Rotation & Load 　■BRVV　■BRV　■BR
/size rotation(rpm)	φ２０ ※	φ２５ ※	φ３０	φ３５	φ４０	φ４５	φ５０	φ５５	φ６０	φ６５	φ７０	φ７５	φ８０
３００ｒｐｍ	63	93	167	225	314	402	470	510	539	588	637	764	850
３２０ｒｐｍ	62	91	161	218	302	386	451	490	519	568	617	739	823
３４０ｒｐｍ	61	90	155	210	290	370	431	470	500	549	598	713	798
３６０ｒｐｍ	60	88	149	202	278	355	412	451	480	529	578	688	771
３８０ｒｐｍ	59	87	143	194	267	339	392	431	461	510	559	662	746
４００ｒｐｍ	58	86	137	186	255	323	372	412	441	490	539	637	719
４２０ｒｐｍ	57	85	131	178	243	308	353	392	421	470	519	612	693
４４０ｒｐｍ	57	82	125	171	231	292	333	372	402	451	500	586	667
４６０ｒｐｍ	56	81	120	163	220	276	314	353	382	431	480	561	641
４８０ｒｐｍ	55	80	114	155	208	261	294	333	363	412	461	535	615
５００ｒｐｍ	55	79	108	147	196	245	274	314	343	392	441	510	589

※φ２０、φ２５are only for BRtype

please use the above list as acriterion for your parts selecton. The withstand-load varies widely depending on the worksing conditions
(such as impact,unbalanced load,temperature,humidity,and road surface).
If you have any question about usage of our products,Please feel free to contact us.

For details about our bearings (specialized/standard), contact us.
